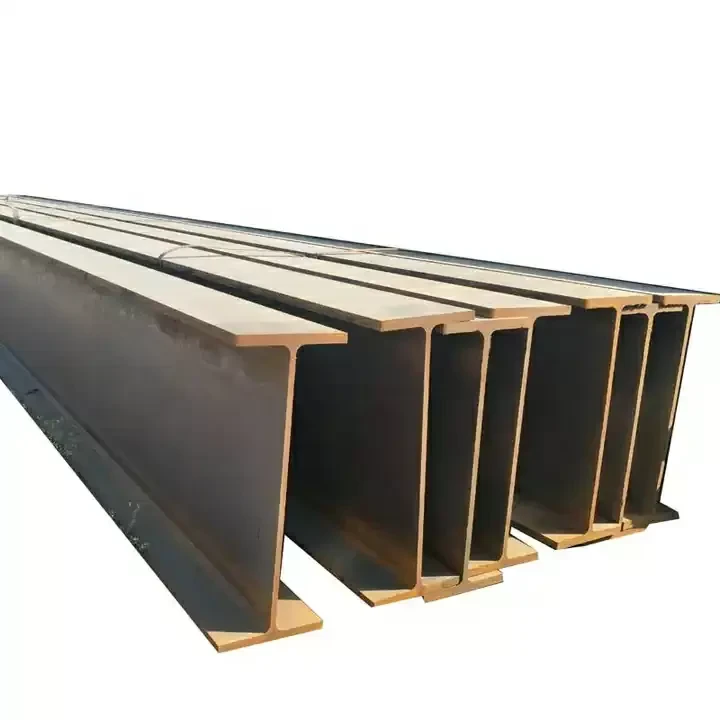

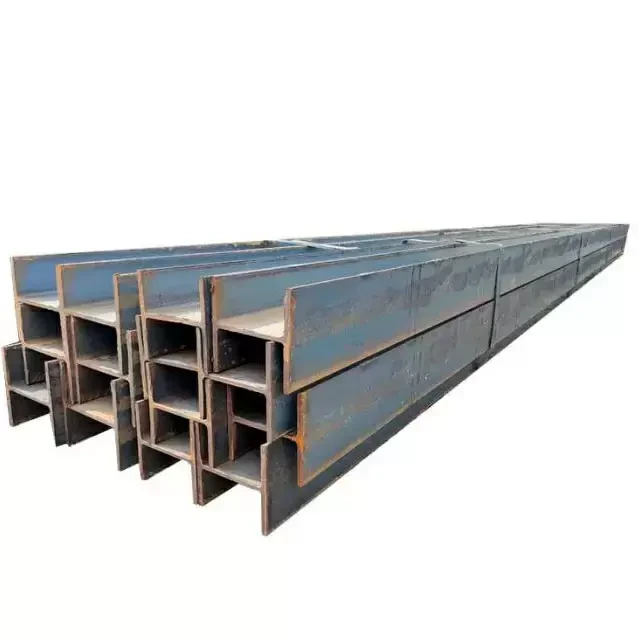

Product Introduction

H-beam steel is a new type of economic construction steel.

H-beam steel is an economic cross-sectional high-efficiency profile with more optimized cross-sectional area distribution and a more reasonable strength-to-weight ratio, which is named because its cross-section is the same as the English letter "H". Since all parts of H-beam steel are arranged at right angles, H-beam steel has the advantages of strong bending ability, simple construction, cost saving and light structural weight in all directions, and has been widely used.

H beams are divided into hot-rolled H-beams and welded H-beams (H). Hot-rolled H-beams conclude wide-flange H-beams (HW), middle-flange H-beams (HM) and narrow-flange H-beams (HN). HW is H beam with basically same height and flange width, which is mainly used as core column in reinforced concrete frame structure, also called stiff steel column. HM is H beam that the ratio of the height and flange width is roughly 1.33~~1.75. Mainly used in steel structures as steel frame columns that bear dynamic loads, such as equipment platforms. HM is H beam that the ratio of the height and flange width is greater than or equal to 2. The main materials of H-beam are Q235B, SM490, SS400, Q345, Q345B, etc.

About Us

The company is committed to providing customers with high-quality, low-cost steel products and strives to create value for customers. With advanced processing equipment and a strong logistics and distribution system, it can meet customer needs at any time.

Benefits of H-Beam

• High structural strength: Compared with I-beam, the section modulus is larger, and the metal can be saved by 10-15% under the same bearing conditions. The design style is flexible and abundant: in the case of the same beam height, the steel structure will be 50% larger than the concrete structure bay, thus making the building layout more flexible.

• Light structure weight: Compared with concrete structure, the steel structure’s weight is reduced, which reduces the internal force of structure design, simplifies construction and decreases the cost.

• High structural stability: The steel structure mainly made of H-section steel has scientific and reasonable structure with good plasticity and flexibility, and high structural stability. It is suitable for building structures that withstand large vibration and impact loads.

• Increase the effective use area of the structure: Compared with the concrete structure, the steel structure column has a small cross-sectional area, which can increase the effective use area of the building.

• Save labor and material: Compared with welding H-shaped steel, it can save labor and material, and reduce the consumption of raw materials, energy and labor.

• Easy to process by machine: easy to connect and install, dismantle and reuse.

We have our own Physical & Chemical Testing Center Lab to guarantee our product quality. Our test items & instrument fully meet international standards.

Applications of H-Beam

H beam is mainly used for beam and column members in industrial and civil structures.

• Load-bearing support for industrial structures.

• Steel piles and supporting structure of underground engineering.

• Structure of industrial equipment such as petrochemical and electric power.

• Long-span steel bridge components.

• Ship and machinery manufacturing frame structure.

• Girder support for trains, cars, and tractors.

• Port conveyor belt, high-speed baffle bracket.

Why Should You Buy From Us?

1. Our experienced team can provide you with the most professional steel purchase plan, the most favorable price and transportation method.
2. All our products will go through factory inspection, quality assurance.
3. Can provide customers with comprehensive production pictures/videos. The whole process from production to delivery to your designated location can be tracked.
4. Provide the most competitive price, on the premise of ensuring the quality. As a leading steel group in China, we have our own warehouses all over the country and always have a large stock for fast delivery.
